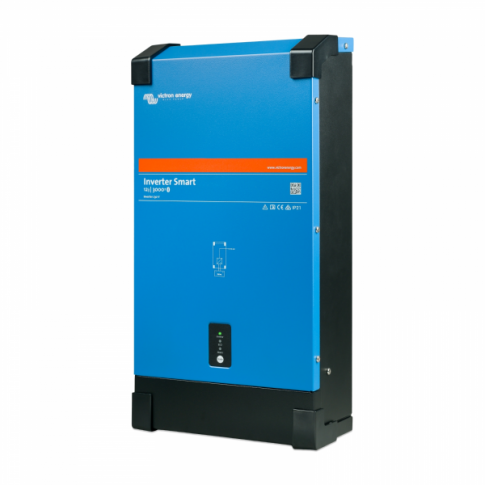

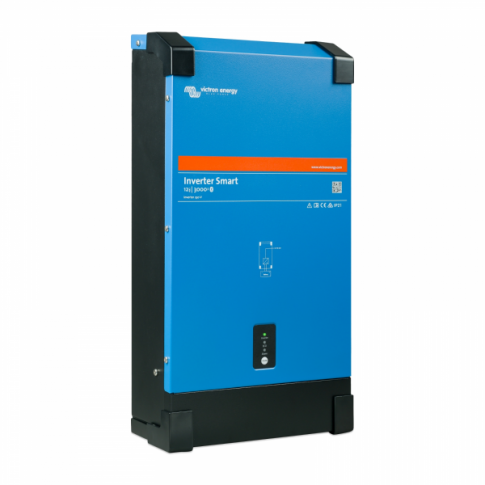

Victron Inverter Smart 3000VA 12V 230V

Photonic Universe is an official distributor of products from Victron Energy – the globally renowned manufacturer of high-quality hybrid power electronics. Victron Energy inverters are known worldwide for their exceptional reliability, innovative engineering, and superior build quality.

The Victron Inverter Smart 3000VA 12V 230V is a state-of-the-art high-quality sine wave inverter, designed to provide reliable and efficient AC power from a 12V DC battery source. Featuring built-in Bluetooth for wireless configuration and monitoring, as well as proven Victron reliability, the Phoenix Inverter Smart is ideal for both off-grid and backup applications where dependable, clean power is essential.

Key functions:

1. 3000VA 12V high-quality sine wave inverter – Converts DC battery power into 230V AC mains electricity, enabling the use of household appliances such as laptops, TVs, lighting, and power tools. Capable of producing a continuous power output of 2400W, with high peak power handling for demanding loads such as electric motors and compressors. The sine wave output ensures maximum compatibility with sensitive electronics.

2. Bluetooth built-in – Configure and monitor your inverter directly from a smartphone or tablet via the free VictronConnect app (available on Google Play and Apple App Store). Adjust key parameters including:

• Low battery voltage alarm and cut-off levels
• Dynamic load-dependent cut-off settings
• Output voltage (210–245V) and frequency (50Hz or 60Hz)
• ECO mode activation and sensitivity
• Alarm relay configuration

3. VE.Direct communication port – VE.direct port of the inverter enables connection to a PC/Laptop to access the free VictronConnect software (requires VE.Direct to USB cable sold separately).

Additional intelligent features:

• Proven reliability: Built using Victron’s full bridge plus toroidal transformer topology, ensuring exceptional durability. Short-circuit proof and protected against overheating due to overload or high ambient temperature.
• High start-up power: Designed to start demanding loads such as LED and halogen lighting systems, or power tools with high inrush currents.
• ECO mode: Reduces power consumption when the load is low by switching the inverter to standby. The inverter automatically wakes at adjustable intervals to check the load, resuming full operation when needed.
• Remote on/off: Connect an external switch or relay for remote inverter control.
• LED diagnosis: Visual status and fault indication for quick troubleshooting (see manual for details).
• Seamless integration with automatic transfer switches: For uninterrupted operation during grid or generator changeover, pair with the Victron Filax Automatic Transfer Switch (switchover time <20ms), or use a MultiPlus inverter/charger for integrated transfer functionality.

Applications:
Perfect for off-grid power systems, backup power setups, marine and vehicle installations, and any application requiring a dependable 230V AC supply from a 12V battery.

Click on the Details and Specifications tab for more information.

Specifications:

• Input DC voltage range: 9.3V – 17V
• Output AC voltage range: 230V
• Output AC frequency: 50Hz / 60Hz (programmable with app)
• Continuous power at 25°C: 3000VA / 2400W
• Continuous power at 40°C: 2200W
• Peak power: 4000W
• Zero-load power: 12W
• Default zero-load power in ECO mode: 1.5W (Default retry interval = 2.5s, adjustable)
• Nominal inverter efficiency: 93%
• Operating temperature range: -40°C to +65°C (fan assisted cooling)
• Battery connection terminals: M8 + M8
• Humidity (non-condensing): max. 95%
• Size: 533 x 285 x 150 mm
• Weight: 19 kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

This inverter comes with a detailed user manual (see Documents tab) which explains wiring, installation and operations.

Please note that this inverter is not supplied with cables. Detailed recommendations for cable length and thickness are available in the user manual.

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for Victron Inverter Smart 12/3000 230V (VPX3000-12)

Datasheet for Victron Inverter Smart 12/3000 230V (VPX3000-12)

Technical drawing for Victron Inverter Smart 12/3000 230V (VPX3000-12)
